PP Filler Rope


  • Payment Terms T/T, L/C, D/P, etc.
  • Delivery Time 20 days
  • Place of Origin China
  • Port of Loading Shanghai, China
  • Shipping By sea
  • HS Code 3926909090
  • Packaging Carton or wooden box, 50kg/pack or according to client's requirement
  • Product Detail

    FAQ

    Product Introduction

    The PP filling rope is made of drawing-grade polypropylene as raw material, through extrusion molding, and then laminating and opening the net to make the cable filling mesh tear fiber, which can be twisted or untwisted. It is a non-hygroscopic filler with good chemical stability and high mechanical strength.

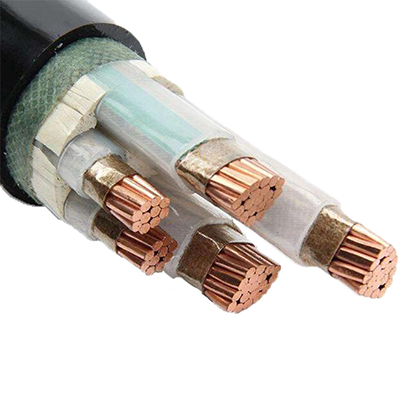

    In the cable production process, in order to make the cable core round, improve the cable appearance quality and increase the cable tensile properties, the gap of the cable core needs to be filled, therefore the PP filling rope is one of the most commonly used filling materials.

    The PP filling rope has good electrical insulation, soft elastic, high tensile strength, no moisture absorption and other excellent physical and chemical properties, and will not rot during long-term filling in the cable, which is suitable for all types of cable filling. No slippage during filling, and the filling is round. The PP filling rope has become one of the best materials for cable filling due to its unique properties.

    The PP filling rope we provide has the following characteristics:
    1) Uniform color,purity and no pollution;
    2) Gently pull and expand into a network with uniform grid;
    3) Soft texture,flexible bending;
    4) After twisting, the twist of the filling rope is even and the outside diameter is stable;
    5) Unloose winding.

    Application

    It is suitable for filling all kind of cables such as power cables, control cables, communication cables.

    Technical Parameters

    Table 1 Non-twisted PP filler Rope

    Fineness(Denier

    Reference film width (mm)

     Breaking strength (N)

    Breaking elongation (%)

    8000

    10

    ≥20

    ≥10

    12000

    15

    ≥30

    ≥10

    16000

    20

    ≥40

    ≥10

    24000

    30

    ≥60

    ≥10

    32000

    40

    ≥80

    ≥10

    38000

    50

    ≥100

    ≥10

    45000

    60

    ≥112

    ≥10

    58500

    90

    ≥150

    ≥10

    80000

    120

    ≥200

    ≥10

    100000

    180

    ≥250

    ≥10

    135000

    240

    ≥340

    ≥10

    155000

    270

    ≥390

    ≥10

    200000

    320

    ≥500

    ≥10

    Note: In addition to the specifications in the table, we can also supply other specifications of PP filling ropes according to customers’ needs.

    Table 2 Twisted PP Filler Rope

    Fineness(Denier

    Diameter after twisting(mm

     Breaking strength (N)

    Breaking elongation (%)

    300000

    10.0

    ≥750

    ≥10

    405000

    12.0

    ≥1010

    ≥10

    615600

    14.0

    ≥1550

    ≥10

    648000

    15.0

    ≥1620

    ≥10

    684000

    16.0

    ≥1710

    ≥10

    855000

    18.0

    ≥2140

    ≥10

    1026000

    20.0

    ≥2565

    ≥10

    Note: In addition to the specifications in the table, we can also supply other specifications of PP filling ropes according to customers’ needs.

    Storage Method

    1) The product shall be kept in a clean, dry and ventilated warehouse. It shall not be piled up with inflammable goods and shall not be near the fire source;
    2) The product should avoid direct sunlight and rain;
    3) The packaging of the product shall be complete to avoid contamination;
    4) Products shall be protected from heavy weight, falls and other external mechanical damage during storage and transportation.
