Product

Polyester Film/Polyester Tape/Mylar Tape


  • production Capacity 4000t/y
  • Payment Terms T/T, L/C, D/P, etc.
  • Delivery Time 10 days
  • Port of Loading Shanghai, China
  • Shipping By sea
  • Container Loading 20t / 20GP, 25t / 40GP
  • HS Code 3920690000
  • Storage 12 months

Free Sample Terms

ONE WORLD is committed to providing customers with industleading high-quality wire and cable matenals and first-classtechnical services

You can request a free sample of the product you are interested inwhich means you are willing to use our product for production
We only use the experimental data you are willing to feedback andshare as the verification of product characteristics and quality , andthen help us to establish a more complete quality control system toimprove customers’ trust and purchase intention , so please restassured
You can fill out the form on the right to request a free sample

Application Instructions
1 . The customer has an international express delivery account orvoluntarily pays the freight ( the freight can be returned in the order )
2 . The same institution can only apply for one free sample of thesame product , and the same institution can apply for up to fivesamples of different products for free within one year
3 . The sample is only for wire and cable factory customers , and onlyfor laboratory personnel for production testing or research

Sample Packaging

free sample request form

Fill in the form below withsample needs ONE WORLDprofessional technical engineers will contact you within 24 hours .

Please enter the required sample specifications , or briefly describe theproject requirements , we will recommend samples for you

product description

Product Introduction

Mylar tape, also known as polyester tape, is an insulating tape-shaped material made of blank slices and mother slices with polyethylene terephthalate(PET) as the main raw material, after pre-crystallization and drying, enter the extruder for melt extrusion, and then casting, stretching, winding, and slitting.

Mylar tape has a very wide range of applications in cable products. It is used to bind the cable core after cabling of communication cable, control cable, data cable, optical cable and other products, to prevent the cable core from loosening, and also has the functions of blocking water and moisture. When there is a metal braided shielding layer outside the cable core, it can also prevent the metal wire from piercing the insulation and causing short circuit or voltage breakdown. When extruding the sheath, it can prevent the sheath from scalding the cable core at high temperature and play the role of heat insulation.

The polyester tape that we provided has characteristics of smooth surface, no bubbles, no pinholes, uniform thickness, high mechanical strength, good insulation performance, puncture resistance, friction resistance, high temperature resistance, smooth wrapping without slipping, it is an ideal tape material for cable / optical cable.

We can provide natural color or other colors of polyester tapes according to customers’ requirements.

Application

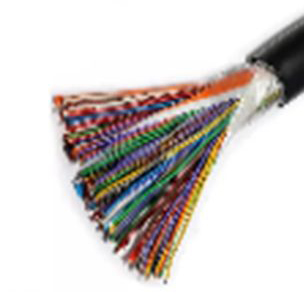

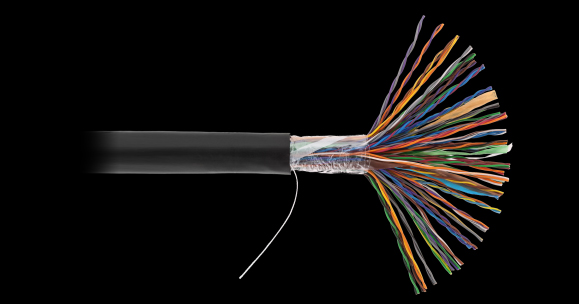

Mainly used to bind the cable core of communication cable, control cable, data cable, optical cable,etc.

pdapplication

Technical Parameters

Nominal Thickness

(μm)

Tensile Strength

(MPa

Breaking Elongation

(%)

Dielectric Strength

(V/μm)

Melting Point

(℃)

12

≥170

≥50

≥208

≥256

15

≥170

≥50

≥200

19

≥150

≥80

≥190

23

≥150

≥80

≥174

25

≥150

≥80

≥170

36

≥150

≥80

≥150

50

≥150

≥80

≥130

75

≥150

≥80

≥105

100

≥150

≥80

≥90

Note: More specifications, please contact our sales staff.

PACKAGING/ STORAGE

Packaging

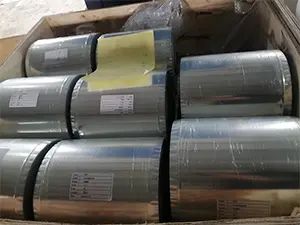

(1) Mylar tape in spool is wrapped with wrapping film and placed in a glued wooden box with a bubble bag.
(2)Mylar tape in pad is packed in plastic bag and put into cartons, then palletized, and wrapped with wrapping film.
Pallet and wooden box size: 114cm*114cm*105cm

Storage

1) The product shall be kept in a clean, dry and ventilated warehouse.
2) The product should not be stacked together with flammable products and should not be close to fire sources.
3) The product should avoid direct sunlight and rain.
4) The product should be packed completely to avoid moisture and pollution.
5) The product shall be protected from heavy pressure and other mechanical damage during storage.

Certification

GXH22070473 聚酯带_page-0001
GXH22070473 聚酯带_page-0002
GXH22070473 聚酯带_page-0003
GXH22070473 聚酯带_page-0004
GXH22070473 聚酯带_page-0005
GXH22070473 聚酯带_page-0006
