G.652D Optical Fiber
Product Introduction
G.652D optical fiber is ideally designed for use in metropolitan, local and access networks.
G.652D non-dispersion-shifted single-mode optical fiber adopts advanced rod making and wire drawing technology to reduce the water peak loss of 1383nm, and the working wavelength is extended to E-band(1360nm-1460nm), realizing full-band transmission of O, E, S, C and L(1260nm-1625nm). At the same time, it has stable and superior polarization mode dispersion coefficient, which can meet the long distance and high speed transmission.
G.652D non-dispersion-shifted single-mode optical fiber adopts UV curing technology and uses double-layer bending loss-insensitive acrylic resin coating layer, which has a good protective effect on the fiber cladding and can meet the application of different occasions. G.652D optical fiber adopts advanced coating curing technology to provide superior dynamic fatigue resistance and increase the service life of the optical fiber.
The G.652D optical fiber we provided has the following characteristics:
1) Achieve O, E, S, C, L(1260nm-1625nm) full-band transmission, increase the transmission bandwidth.
2) Flexible selection of various coatings to meet the needs of different application occasions.
3) Small polarization mode dispersion coefficient, suitable for high-speed transmission.
4) Superior dynamic fatigue resistance, suitable for use in different environments.
Application
Mainly used in various types of optical cable to play the role of communication.
Optical Characteristic
|
Attenuation |
|||||
|
Wavelength(nm) |
Max.Value(dB/km) bare |
Max.Value(dB/km) colored |
|||
|
1310 |
0.344 |
0.354 |
|||
|
1383 |
0.344 |
0.354 |
|||
|
1550 |
0.204 |
0.214 |
|||
|
1625 |
0.234 |
0.244 |
|||
|
Attenuation vs Wavelength |
|||||
|
Wavelength Range(nm) |
Ref. wavelength(nm) |
Max. Difference(dB/km) |
|||
|
1285～1330 |
1310 |
0.05 |
|||
|
1525～1575 |
1550 |
0.05 |
|||
|
Point Discontinuity |
|||||
|
Wavelength(nm) |
Point Discontinuity (dB) |
||||
|
1310 |
0.05 |
||||
|
1550 |
0.05 |
||||
|
Macrobend Loss |
|||||
|
Mandrel Diameter(mm) |
Turn Number |
Wavelength(nm) |
Induced Attenuation(dB) |
||
|
50 |
100 |
1550 |
≤0.05 |
||
|
50 |
100 |
1625 |
≤0.10 |
||
|
Cutoff Wavelength |
|||||
|
Cable cutoff wavelength(nm) |
≤1260 |
||||
|
Mode Field Diameter |
|||||
|
Wavelength(nm) |
Mode Field Diameter(μm) |
||||
|
1310 |
9.2±0.4 |
||||
|
Dispersion |
|||||
|
Wavelength(nm) |
Dispersion Value(ps/(nm•km)) |
||||
|
1288～1339 |
≤3.5 |
||||
|
1271～1360 |
≤5.3 |
||||
|
1550 |
≤18 |
||||
|
1625 |
≤22 |
||||
|
Zero Dispersion Wavelength(nm) |
1300～1324 |
||||
|
Zero Dispersion Slope（ps/(nm2•km)） |
≤0.092 |
||||
|
PMD |
|||||
|
Max. Individual Value (ps/√km） |
≤0.1 |
||||
Dimensional Characteristic
|
Fiber Curl(m) |
≥4.0 |
|
Cladding Diameter(μm) |
125±1 |
|
Core/Cladding Concentricity Error(μm) |
≥0.64 |
|
Cladding Non-circularity (%) |
≤1.0 |
|
Coating Diameter (uncolored) (μm) |
245±7 |
|
Coating Diameter (colored) (μm) |
250±15 |
|
Coating Non-circularity (%) |
≤6.0 |
|
Coating/cladding Concentricity Error(μm) |
≤12 |
Mechanical Characteristic
|
Proof Test (GPa) |
≥0.69 |
|
Coating Stripe Force Peak Value (N) |
1.0～8.9 |
Environmental Characteristic
|
Temperature Dependence (-60℃～+85℃) |
≤0.05dB/km @1310nm &1550nm |
|
Damp Heat (85±2℃, Up to 85% RH,30 days) |
≤0.05dB/km @1310nm &1550nm |
|
Water Immersion (23±2℃, 30 days) |
≤0.05dB/km @1310nm &1550nm |
|
Heat Aging (85±2℃, 30 days) |
≤0.05dB/km @1310nm &1550nm |

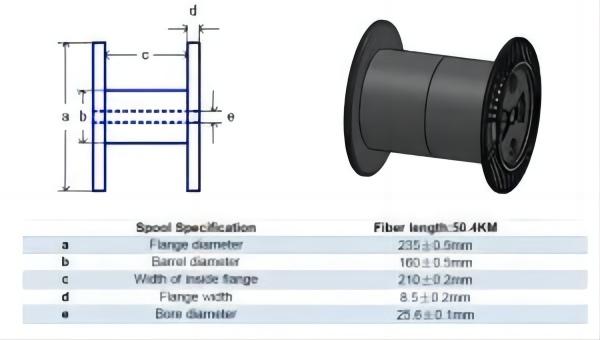

Packaging

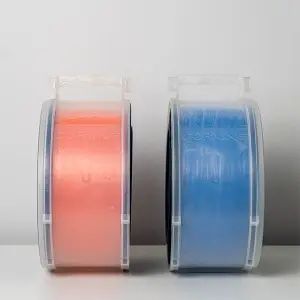

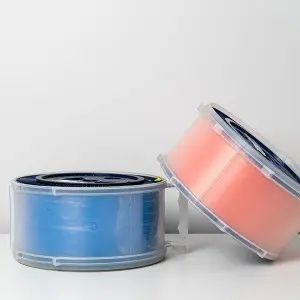

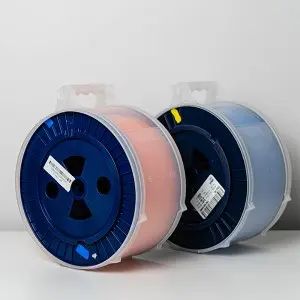

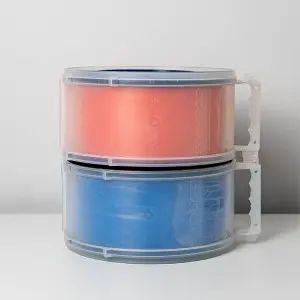

Optical fiber is packaged in spool.
Storage
1) The product should be kept in a clean, hygienic, dry and ventilated storehouse.
2) The product should not be stacked together with flammable products and should not be close to fire sources.
3) The product should avoid direct sunlight and rain.
4) The product should be packed completely to avoid moisture and pollution.
5) The product shall be protected from heavy pressure and other mechanical damage during storage.
