Cable paper/Insulating paper

Cable paper/Insulating paper

Cable paper or insulating paper used for oil-paper insulated power cable, motor and transformer, etc. Cable paper has good electrical properties, high temperature resistance and pressure resistance.

PAYMENT TERMS T/T, L/C, D/P, etc.
DELIVERY TIME 20 days
PLACE OF ORIGIN China
SHIPPING By sea
PORT OF LOADING Shanghai, China
HS CODE 4823909000
PACKAGING Carton or wooden box or according to client’s requirement

Insulating paper Introduction

Cable paper or kraft paper is made of unbleached kraft softwood pulp as raw material, after free-form pulping, without glue and filler, then papermaking production process, and finally slit into tape paper products. It is suitable for the insulation of oil-paper insulating paper cables, the insulation between the turns of motors and transformers, and the insulation of other electrical appliances.

The cable paper or kraft paper we provided has the following characteristics:
1) The insulating paper is soft, tough and even.
2) Good mechanical properties, strong tensile strength, folding strength and tearing strength, easy to wrap.
3) Good electrical properties, high dielectric strength and low dielectric loss.
4) High temperature resistance, high pressure resistance and vulcanization resistance.
5) Without metals, sand and conductive acid substances. The stability of the paper is good after treated in a insulating liquid.

Application

Mainly used in insulation layer of oil-paper insulated power cable, insulation between turns of motors and transformers, and insulation of other electrical appliances, etc.

Technical Parameters

Item Technical Parameters
Nominal thickness(μm) 80 130 170 200
Tightness(g/cm3 0.90±0.05 0.90±0.05 0.90±0.05 0.90±0.05
Tensile strength(kN/m) Longitudinal ≥6.2 ≥11.0 ≥13.7 ≥14.5
Transverse ≥3.1 ≥5.2 ≥6.9 ≥7.2
Breaking elongation(%) Longitudinal ≥2.0
Transverse ≥5.4
Tearing degree(Transverse)(mN) ≥510 ≥1020 ≥1390 ≥1450
Fold resistance (average of longitudinal and transverse) (times) ≥1200 ≥2200 ≥2500 ≥3000
Power frequency breakdown voltage (kV/mm) ≥8.0
pH of water extract 6.5~8.0
Conductivity of water extract (mS/m) ≤8.0
Air permeability (μm/(Pa·s)) ≤0.510
Ash content (%) ≤0.7
Water content (%) 6.0~8.0
Note: More specifications, please contact our sales staff.

Packaging

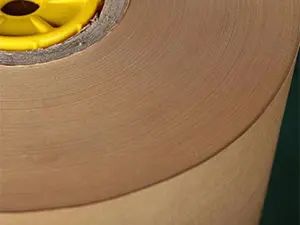

The insulating paper or cable paper is packaged in pad or spool.

insulating paperinsulating paper
Storage

1) The product shall be kept in a clean, dry and ventilated warehouse.
2) The product should not be stacked together with flammable products and should not be close to fire sources.
3) The product should avoid direct sunlight and rain.
4) The product should be packed completely to avoid moisture and pollution.
5) The product shall be protected from heavy pressure and other mechanical damage during storage.
6) The storage temperature of the product should not exceed 40°C.
