Marine environments expose Ethernet cables to electromagnetic interference (EMI) and demanding conditions. Choosing the right shielding structure is key to reliable communication.
Common marine Ethernet cable models include information about rating, construction, and materials. Example: Cat 5e F/UTP, 4×2×24 AWG, LSZH indicates a Category 5e cable with 24 AWG conductor, overall shield of Aluminum Foil Mylar Tape, and low-smoke zero-halogen sheath. Here, F/UTP represents the shielding type.
Ethernet cables come in various shielding configurations. Common types:

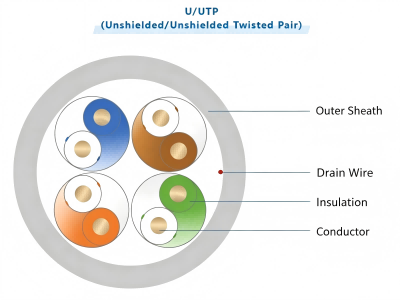

Unshielded Twisted Pair (U/UTP)
No individual or overall shielding, relying on twisted pair balance to reduce interference. Advantages include low cost and light weight. However, U/UTP is generally not recommended for most marine applications due to prevalent EMI. It may only be considered for very short, isolated runs within clean, shielded enclosures.

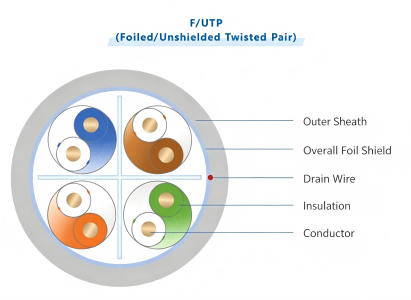

Overall Shield with Aluminum Foil Mylar Tape (F/UTP)
Aluminum Foil Mylar Tape wraps around all pairs, providing effective high-frequency shielding. Offers good cost-performance balance for general marine and industrial applications. Using high-quality Aluminum Foil Mylar Tape ensures consistent shielding performance.
Critical: The integrated drain wire must be properly grounded for shielding to be effective. Poor grounding can make foil shielding ineffective or even detrimental.

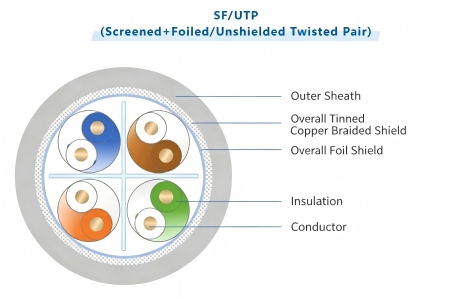

Overall Shield with Aluminum Foil Mylar Tape + Tinned Copper Braid (SF/UTP)
Dual shielding combines foil and tinned copper braid, significantly improving EMI/RFI resistance. The tinned copper braid provides excellent low-impedance grounding and superior low-frequency magnetic shielding (which foil alone cannot achieve), plus some mechanical protection. Well-suited for complex vessel environments.

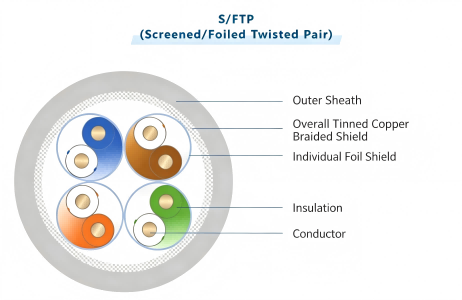

Individual Pair Shield with Aluminum Foil Mylar Tape and Overall Shield with Tinned Copper Braid (S/FTP)
Each pair has individual foil shielding, plus an overall tinned copper braid. This structure reduces crosstalk between pairs while minimizing external interference, offering high shielding performance across a wide frequency spectrum. S/FTP is suitable for marine environments with high EMC requirements.

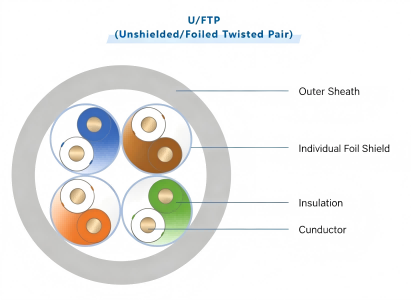

Individual Pair Shield with Aluminum Foil Mylar Tape Only (U/FTP)
Each pair has its own foil shielding, but no overall shield. Primarily reduces crosstalk between pairs, but protection against external interference is limited. Typically used in stable environments like equipment rooms. In marine cable selection, solutions with overall shielding are generally preferred, making U/FTP relatively uncommon.

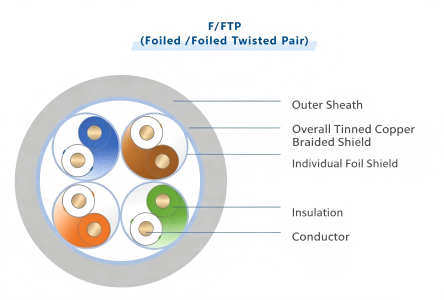

Individual Pair Shield and Overall Shield Both with Aluminum Foil Mylar Tape (F/FTP)
All-foil structure combining individual and overall foil shielding. Without a braided layer, performance against low-frequency magnetic interference is limited. Also difficult to terminate reliably in field-installed connectors due to fragile foil. Consequently, F/FTP is less commonly used in marine applications compared to S/FTP or SF/UTP.
Proper shielding structure design is critical to marine Ethernet cable stability and reliability. Choosing the appropriate shielding solution based on the specific application environment and EMI level enhances overall communication system performance.
