This article provides a detailed introduction to Teflon high-temperature resistant wire, covering its definition, characteristics, applications, classifications, purchasing guide, and more.
1. What is Teflon High-Temperature Resistant Wire?
Teflon high-temperature resistant wire refers to a type of special electrical wire that uses fluoroplastics such as polytetrafluoroethylene (PTFE) or perfluoroalkoxy alkane (PFA) as insulation and sheath. The name "Teflon" is the trademark of DuPont for its PTFE material, and due to its high popularity, it has become a generic term for this type of material.
This type of wire is widely used in fields with extremely harsh working environments, such as aerospace, military, medical, and high-temperature industrial equipment, thanks to its excellent high-temperature resistance, outstanding electrical performance, and chemical stability. It is known as the "King of Wires."
2. Core Characteristics and Advantages
The reason why Teflon wire is highly praised lies in the unique molecular structure of the material itself (extremely strong carbon-fluorine bonds). Its main characteristics include:
(1). Excellent High-Temperature Resistance:
Wide operating temperature range: conventional products can operate continuously from -65°C to +200°C (even +260°C), and short-term resistance can exceed 300°C. This is far beyond the limits of ordinary PVC (-15°C to +105°C) and silicone wire (-60°C to +200°C).
(2). Outstanding Electrical Performance:
High dielectric strength: capable of withstanding extremely high voltage without breakdown, excellent insulation performance.
Low dielectric constant and low dielectric loss: even under high frequency, signal transmission loss is minimal, making it ideal for high-frequency data and RF signal transmission.
(3). Strong Chemical Stability:
Almost unaffected by any strong acids, strong alkalis, organic solvents, or oils, with excellent corrosion resistance. It will not deteriorate even when boiled in aqua regia.
(4). Excellent Mechanical Properties:
Low friction coefficient: smooth surface, non-stick, easy to thread, and not prone to dirt.
Good flame resistance: meets UL94 V-0 flame retardant rating, self-extinguishing when removed from fire, high safety.
Anti-aging and UV resistant: maintains long-term performance stability in harsh environments, long service life.
(5). Other Advantages:
Extremely low water absorption, almost none.
Non-toxic and harmless, complies with medical and food-grade certifications (e.g., USP Class VI, FDA), suitable for medical and food equipment.
3. Common Types and Structures
Teflon wire can be classified in various ways according to its structure, material, and standards:
(1). By insulation material:
PTFE (Polytetrafluoroethylene): the most common, with the most comprehensive performance, but difficult to process (requires sintering).
PFA (Perfluoroalkoxy): similar performance to PTFE, but can be processed by melt extrusion, more suitable for manufacturing thin-wall insulation.
FEP (Fluorinated Ethylene Propylene): high transparency, good melt processability.
(2). By structure:
Single-core wire: conductor (solid or stranded) covered with Teflon insulation. Stable structure, commonly used for fixed wiring.

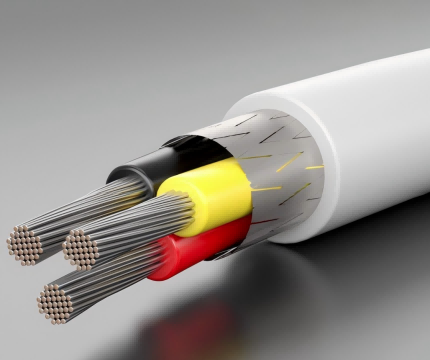

Multi-core shielded wire: multiple insulated cores twisted together, wrapped with aluminum foil and copper braid shielding, with an outer sheath. Effectively resists EMI, used for precision signal transmission.
Coaxial cable: consists of a central conductor, insulation, shielding, and sheath, used for high-frequency RF transmission.
4. Main Application Fields
Due to its unique performance combination, Teflon wire has become the preferred choice for high-end and demanding applications:
(1). Aerospace and Military: internal wiring of aircraft, rockets, satellites, control systems, radar systems, etc. Requires lightweight, high-temperature resistant, highly reliable materials.
(2). Medical Equipment: diagnostic equipment (CT, MRI), surgical instruments, analytical instruments, sterilization equipment, etc. Requires non-toxic, resistant to disinfectants, and high reliability.
(3). Industrial Manufacturing:
High-temperature environments: welding machine cables, heaters, ovens, boilers, hot air machines.
High-frequency applications: high-frequency sealing machines, ultrasonic devices, communication base station feeders.
(4). Electronics and Communications: high-frequency data cables, RF coaxial cables, internal wiring of precision instruments, semiconductor manufacturing equipment.
(5). Automotive Industry: high-voltage harnesses in new energy vehicle battery packs, motor connection wires, sensor harnesses. Requires high temperature and high voltage resistance.
(6). Household Appliances: internal wiring of heating parts in irons, microwave ovens, air fryers, ovens, etc.
5. How to Choose Teflon Wire?
When selecting, consider the following factors:
(1). Working Environment:
Temperature: determine long-term working temperature and possible short-term peak temperature.
Voltage: determine operating voltage and withstand voltage level.
Chemical environment: exposure to oils, solvents, acids, bases.
Mechanical environment: bending, abrasion, tensile requirements.
(2). Certifications and Standards:
Choose wires compliant with relevant standards (UL, CSA, CE, RoHS) according to export markets and application fields. For medical and food equipment, proper certifications are a must.
(3). Wire Quality:
Conductor: usually tinned copper or bare copper. Tinned copper improves oxidation resistance and solderability. Check brightness and tight stranding.
Insulation: genuine Teflon wire self-extinguishes after flame removal, green flame indicates fluorine, burns into clumps without drawing. Ordinary plastics continue burning with filament.
Printing: clear, wear-resistant, including specs, standards, certifications, manufacturer.
(4). Cost Considerations:
Teflon wire is more expensive than ordinary cables. Choose the right grade to balance performance and cost.
6. Conclusion
With its high temperature resistance, corrosion resistance, superior insulation, and stability, Teflon wire has become an indispensable component in high-end industrial and technological fields. Despite its higher cost, its safety, reliability, and long service life bring irreplaceable value. The key to the best solution is to fully understand your application needs and communicate with reliable suppliers.
